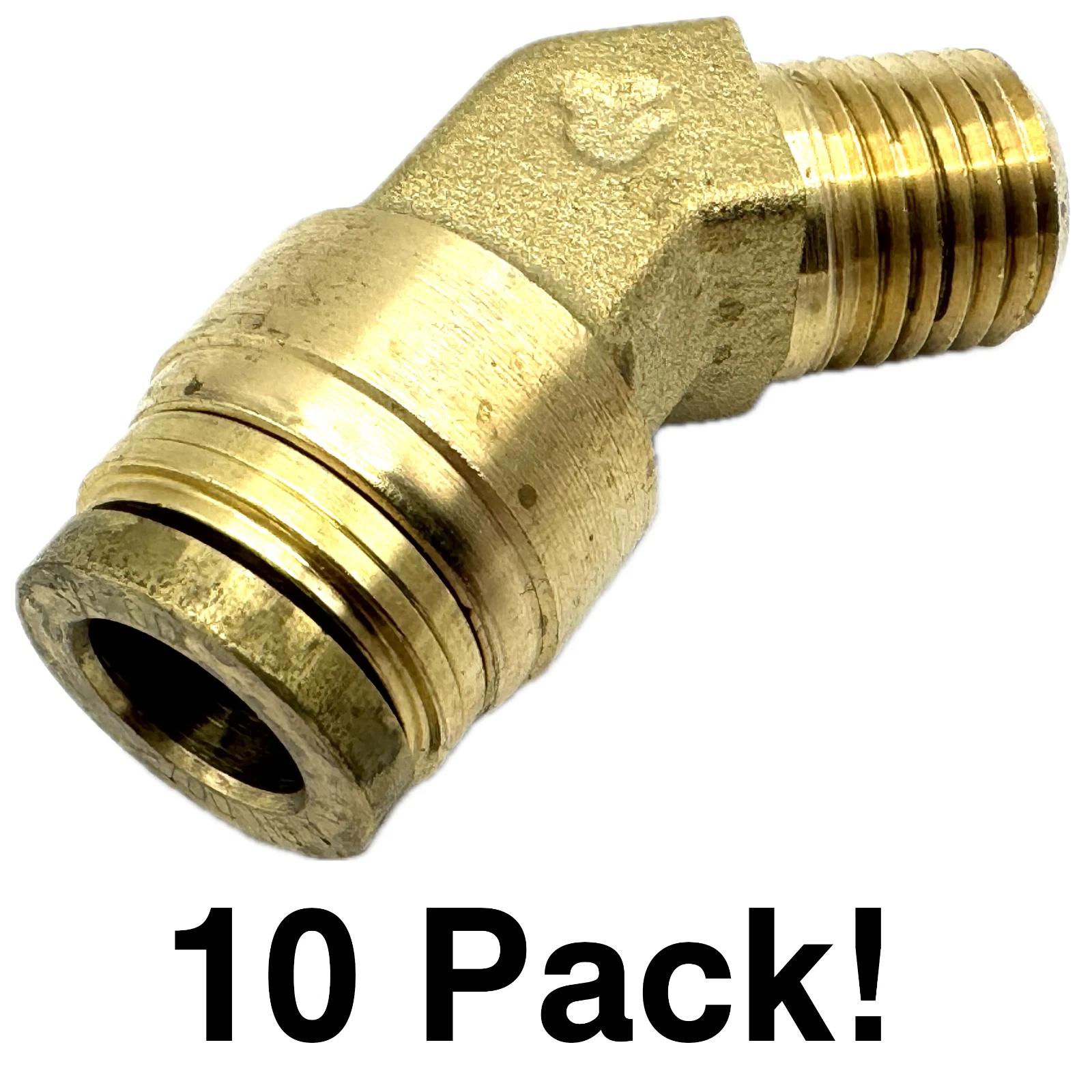

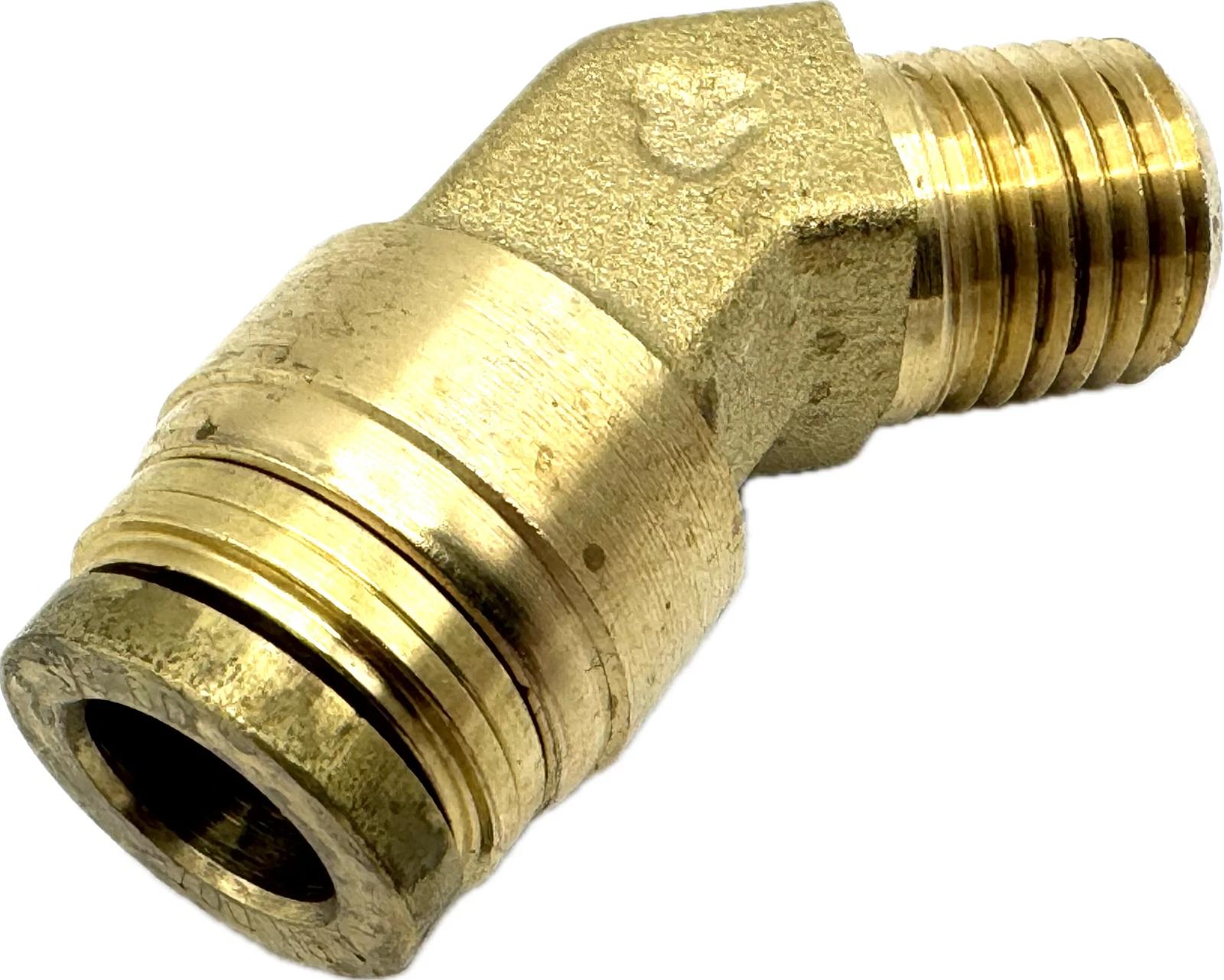

10 Pack! Parker 179PTCNS-6-4, 45° Elbow with 1/4″ Male NPT, 3/8” Push to Connect
10 Pack! Parker 179PTCNS-6-4, 45° Elbow with 1/4″ Male NPT, 3/8” Push to Connect

10 Pack! Parker 179PTCNS-6-4, 45° Elbow with 1/4″ Male NPT, 3/8” Push to Connect

$235.12

Add to wishlist Add to compare
SKU: 317856375869F Categories: , , , Brand:

Description

eBay

10 Pack!

Technical Specifications

Configuration: Tube to Pipe
Connection 2 Size: 1/4″
Connection 2 Type: Male NPT
Shape: Elbow 45° – Rigid
Connection 1 Type: Push-to-Connect
Thread Sealant Material: n/a
Body Material: Brass
Connection 1 Size: 3/8″
Maximum Operating Temperature: 200 °F, 93.3 °C
Minimum Operating Temperature: -40 °F, -40 °C
Body Material: Brass

Being the world’s leader in leak free technologies Parker’s PTC fitting is offered as both a composite and brass push-to-connect air brake fitting that meets SAE and D.O.T. specifications.  Engineered to meet the demands of all truck/trailer, mobile and rail systems worldwide Parker’s PTC fittings reduce assembly time versus compression style fittings by 90%. The composite body is strong, lightweight and impact resistance, while the brass ptc fitting utilizes the same collet and o-ring but features a brass body. The innovative collet design ensures positive grip on the tubing and the rigid stainless steel tube support stays in place for ease of proper assembly.

Use with the following Parker Parflex Division tubing.
• 1120 Nylon Air Brake Tubing
• 1320 Quantum Elastomeric Air Brake Tubing

Markets:
• Heavy duty truck
• Trailer
• Mobile
• Rail

Features/Benefits:
• D.O.T. quick connect push-in fittings for repairing truck and trailer air brake lines
• For use in air brake systems on semi-trucks, trailers, buses, mobile equipment and farm implements
• Use in secondary air applications such as pneumatic doors for rail, air seats, shock absorbers and in cab instruments
• Meets performance requirements of D.O.T. FMVSS 571.106, SAE J1131 and SAE J2494-3
• Stainless steel tube support assures maximum flow and performance requirements of SAE J2494-3
• Composite body – strong, lightweight, compact and impact resistant
• Composite body can be rotated after assembly to align shaped fittings for proper orientation
• All threads per SAE J476
• PTC fittings reduce assembly time over compression style fittings by 90%
• Quick connect push-in fitting for leak proof tube connections
• D.O.T. approved air brake fitting for servicing nylon brake and secondary air lines
• Quick connecting push-in fittings for servicing work by fleets, repair shops and farm implement dealers

Applications:
• Air brakes
• Air tanks
• Air ride
• Sliders
• Tire inflation
• Primary & secondary air lines
• Cab controls

Additional information

condition

New
brand

Parker
MPN

179PTCNS-6-4
Manufacturer

Parker
