Description

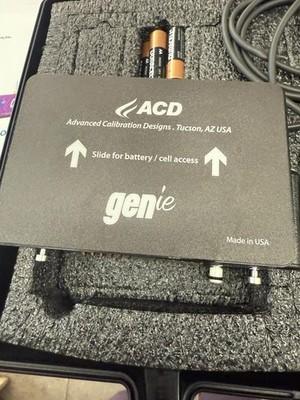

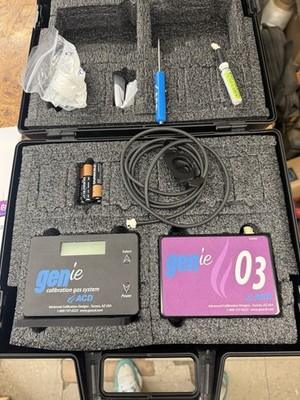

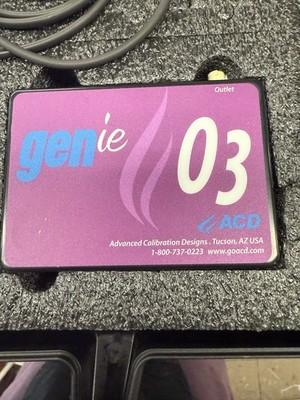

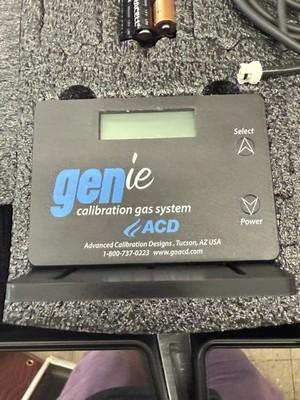

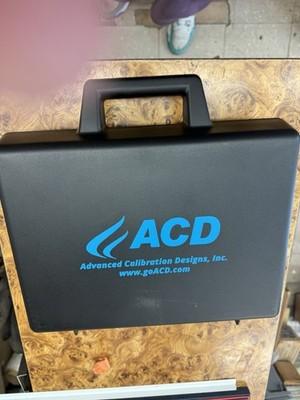

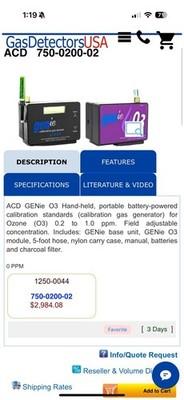

ACD GENie 03 Hand-held, portable battery-powered calibration standards (calibration gas generator) for Ozone (03) 0.2 to 1.0 ppm. Field adjustable concentration. Includes: GENie base unit, GENie 03 module, 5-foot hose, nylon carry case, manual, batteries and charcoal filter.
The GENie O3 is the latest in our line of portable calibration gas standards. Small, lightweight and operating on four AA batteries, the GENie O3 can be utilized in its fanny pack by a technician climbing around equipment to calibrate the most difficult to reach ozone sensors. Plugged in to mains power, the instrument can calibrate hand held detectors right at your service bench.
Features
Most accurate source of ozone calibration gas on the market
Selectable concentrations
Integrated microprocessor controlled feedback
Compact, portable handheld design
Long Life
Specifications
Range 0.2 to 1.0 ppm
Air flow rate (with internal pump) Variable
Source life 500 hours
Warm-up time (to 90%) Approx. 2 minutes
L x W x H 5”W x 3.88”H x 3.13”D
Weight 2 lb. (1360 g)
Operating temperature 0° C to 50° C
Relative humidity (intermittent use) 0 – 80%
Accuracy ±10%
Repeatability ±5%

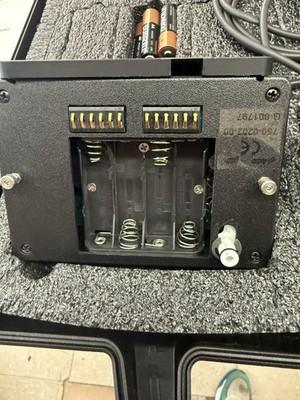

Battery power 4 Alkaline “AA”
Battery life 6 hours @ .5 LPM
Export Info
Made in United States
Additional information
| Weight | 1 kg |
|---|---|
| Brand | Genie |
| Model | ACD GENie 03 Hand-held |
| Compatible Equipment Make | Genie |
