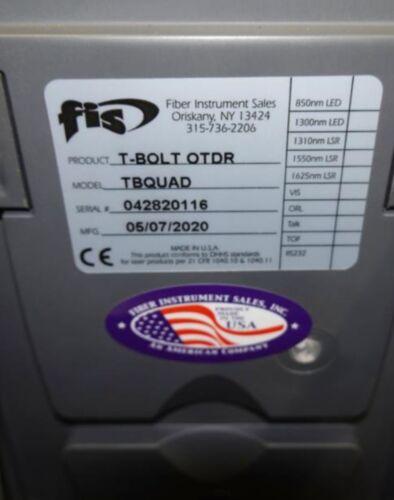

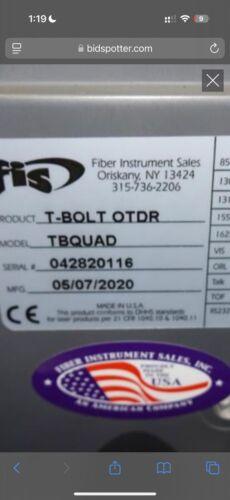

Fis T-BOLT OTDR TBQUAD Fiber Tester

Description

Description

SM/MM (850/1300/1310/1550) OTDR

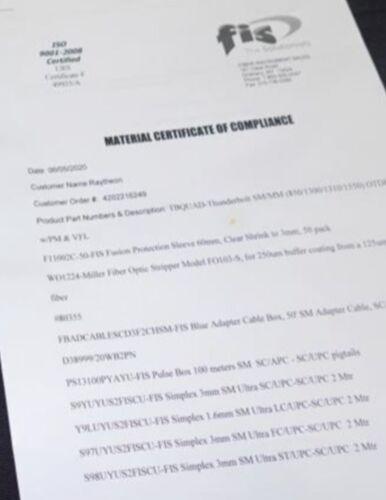

Customer Reference

Detailed Description

Auto Average Handheld Digital (DMM) Multimeter Digit LCD Display dB Function Features

36dB Dynamic Range

• Singlemode, Multimode, or Quad Versions Available

• Auto Test Mode

• 6.5” Color LCD Display

• Link Checker

• Real Time Test Mode

• Easy to Navigate File Folders

• 2 USB Ports – USB Drive Data Transfer

• Gigabit Ethernet Verification Testing

• Macro Bend Detection

• Trace Overlay

• On Board Power Meter

• Visual Fault Locator (650nm)

• Project Mode

• Pass/Fall PDF Reporting Software

OPTIONS

• FIS USB Fiber Inspection Probe (F1DI1000)

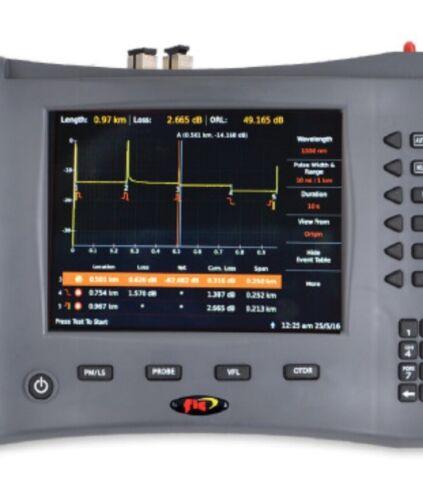

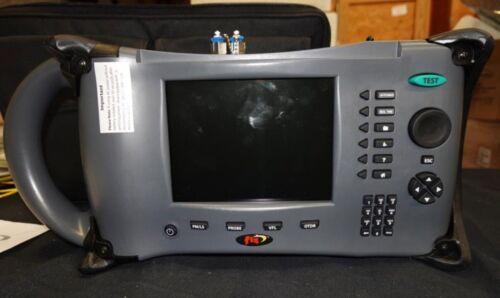

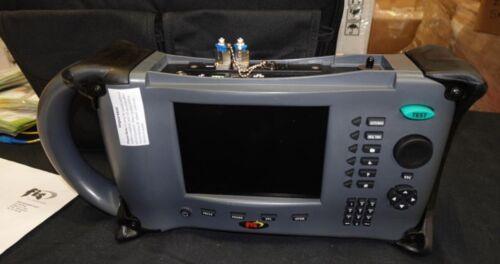

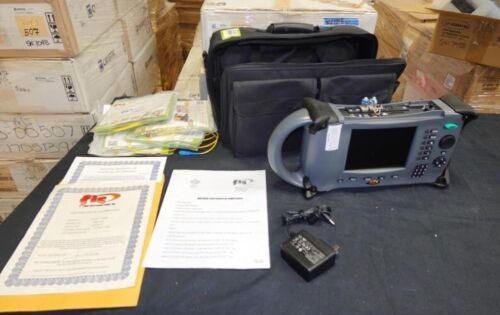

The FIS Thunderbolt Multi-Function OTDR incorporates a full-featured Optical Time Domain Reflectometer (OTDR) designed for ease-of-use in a wide range of

testing applications and environments. The unique, integrated handle on the side of the tester provides the technician with a firm grasp during handling and

fiber testing. Rubber corner bumpers protect it from shock.

The Thunderbolt has a intuitive Graphical User Interface (GUI) and large, high-visibility command keys that make it easy to select between optical testing

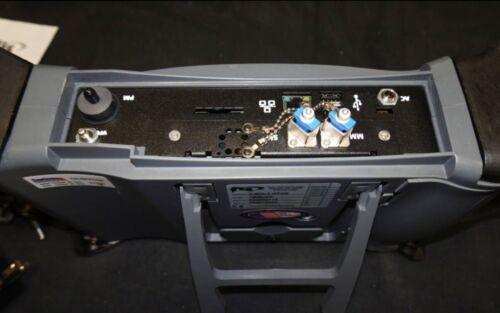

features and parameter settings. The Thunderbolt has the ability to accommodate different connector styles, which provides flexibility when moving from one

interconnect location to another (Remember to use an OTDR launch box between the connector under test and the OTDR adapter test port).

The Thunderbolt provides outstanding value in optical testing performance. Additional features include video probe w/endface analysis, visual fault locator,

power meter, end-of -fiber test capability and Gigabit ethernet fiber verification testing. The unit can quickly and accurately verify break, fiber end or highly

reflective event such as a contaminated (dirty) connector endface. Made In The U.S.A.

SPECIFICATIONS

Wavelength of Operation 850,1300,1310,1550nm

Connector Type (UPC) Fixed SC, FC, or ST

Dynamic Range 36dB

Loss Modes 2 point, dB/KM

Units of Measure Km, m, ft, Kft, miles

Pulse Widths 10, 50, 100, 500, 1000, 5000, 10K, 20K ns

Distance Range 0.5Km – 200Km

Dead Zone ≤1 meter

Data Storage 8 Gig

Battery 14.4 v Li Ion

Battery Life 6 Hours

VFL 1 mW 650nm Red Light 2.5mm Univeral

Dimension 7” x 16”

Weight 4.5 lbs

Fiber Instrument Sales | 161 Clear Road • Oriskany, NY 13424

Tel: 315.736.2206 • 1.800.5000.FIS (347) • Fax: 315.736.2285 | fiberinstrumentsales.com • info@fiberinstrumentsales.com

Rev. E 11/2020

Page 1 of 2

FIS THUNDER BOLT – OTDR

SPECIFICATIONS – POWER METER

Wavelengths 850,1300,1310,1550nm

Range +5dBm to -65dBm

Port 2.5 Universal

ADDITIONAL FEATURES

End of Fiber Link Checker – A great troubleshooting tool!

Quick and easy with the push of a single button, within 5 seconds the unit will display the distance, Link

loss, and average attenuation per KM for any Singlemode cable

Gigabit Analyzer – Quickly verifies a cable for 1 or 10 gig transmission

Identify the fiber type by selecting it in the units pre-configured cable list then select if you want to test

for 1 or 10 gigabit network capability. The ThunderBolt will measure the cable’s distance, attenuation,

and back reflection and compare it to that particular cable’s specifications for physically being able to

handle those bandwidth requirements. Especially valuable for Multimode testing!
