Description

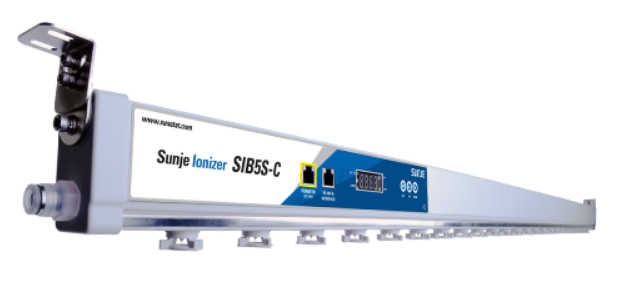

SIB5S Series
This product realizes high frequency to implement stable performance and maintains a constant ion balance even after long-term use, and has a digital control system to minimize corona discharge loss. In addition, it is possible to discharge a wide range of charges through the optimal ion generation design, and can be applied to various installation environments with various lengths.
Key Features
- Stable Ion Balance even after long-term use
- Stable performance through high frequency (100Hz) function
- Slim design and various lengths make it suitable for various installation environments
- Improves ion generation rate by reducing corona discharge loss
- Tip Cleaning Alarm (built-in timer to set tip cleaning cycle)
- Output voltage regulation (8~12.5kVp-p) for optimized static removal

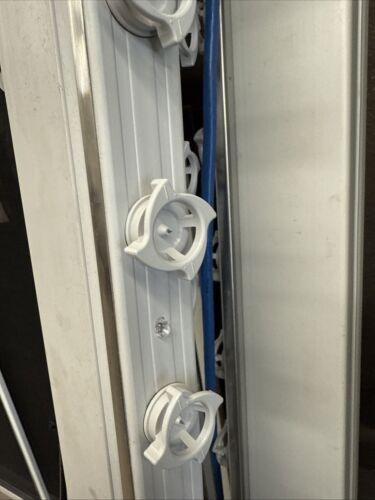

- Fluid Dynamic Nozzle Socket for Preventing Needle Contamination
- One-Touch method for easy discharge needle replacement and cleaning
- Minimized air consumption (minimum flow rate and maximum pressure achieved through socket design innovation)

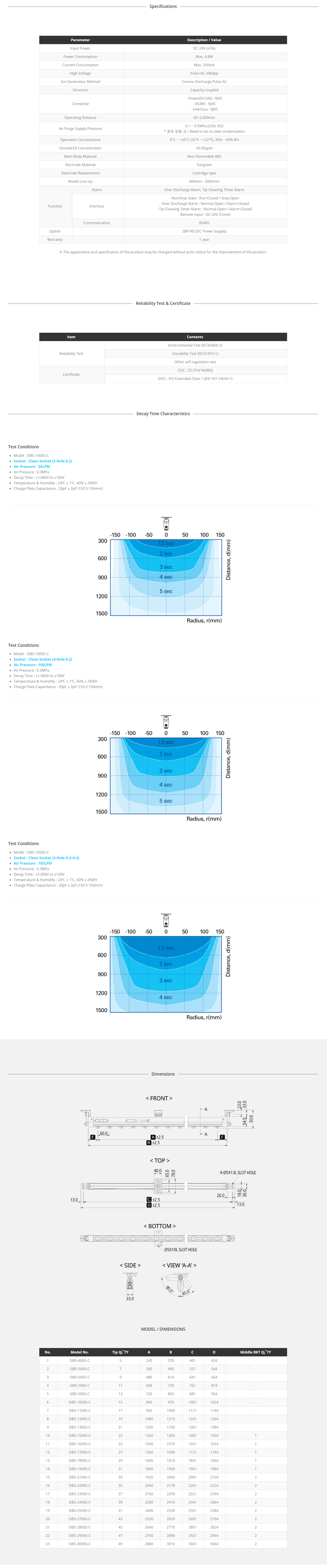

| Parameter | Description / Value | Remark | |
|---|---|---|---|
| Input Power | DC 24V (±5%) | ||
| Power Consumption | Max. 12W | ||
| Current Consumption | Max. 500mA | DC 24V | |
| Ion-Generation Method | Corona Discharge Pulse AC | ||
| Air Purge Supply Pressure | 0.1 ~ 0.5MPa | CDA (Clean Dry Air), N2 | |
| Air Purge Connection Port | Pipe Thread 1/8” | ||
| Ion Balance | Within ±30V | 1,000mm | |
| Ozone (O3) Concentration | ≤0.05ppm | ||
| Main Body Material | Non-Flammable ABS | Level V0 | |
| Electrode Material | Standard | Tungsten | |
| Option | Silicon / Titanium | SIE-4 | |
| Electrode Replacement | Cartridge type | ||
| Operation Circumstance | 0°C to +50°C (32°F to 122°F), 35% to 85% RH | No Condensation | |
| Mounting Method | Bolt Mounting with Bracket | ||
| Ion Bar Length | 637mm ~ 3,718mm | ||
| Function | Remote Control | ||
| Adjust Function | Frequency [Hz] | 1, 3, 5, 8, 10, 20, 30~100 (by 5Hz unit) | |
| Voltage [Level] | 1 ~ 10 | ||
| Alarm Function | High Voltage Abnormal Alarm, Tip Cleaning Alarm (Setting) | ||

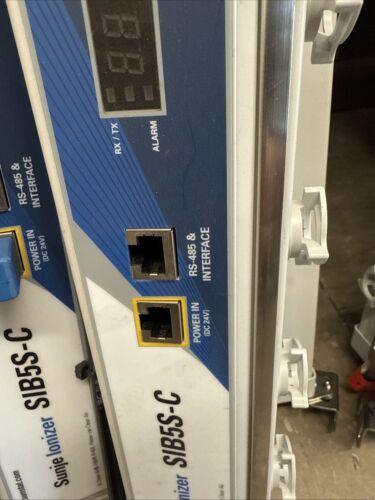

| Interface | Run State, Remote, RS485, Alarm (High Voltage Abnormal, Tip Cleaning) | ||
| Operating Distance | 50 ~ 2,000mm | ||
| Option | RMS (Real Monitoring System), SBP-RD (DC Power Supply) | ||
| Warranty | 1 year | ||
Test Conditions
- Model : SIB5-1500S
- Socket: SIE-4E
- Output Voltage: Pulse AC ±10.5kVp-p
- Air Pressure : 0.3MPa
- Decay Time: ±1,000V to ±100V
- Temperature & Humidity: 24℃ ± 1℃, 40% ± 2%RH
- Charge Plate Capacitance: 20pF ± 2pF (150
- Frequency: 50Hz
Key Features
* Stable ion balance during long term usage
* Low peak voltage through high frequency
* Improved convenience of maintenance by minimizing wear and contamination of discharge emitter
* Increase ion generation by reducing corona discharge loss
* Tip cleaning alarm (You can set tip cleaning period with timer)
* One touch type for easy tip replacement and cleaning
| SIB5S-C Series | |
|
Usage |
To eliminate electrostatic |
Additional information
| Weight | 10 kg |
|---|---|
| Brand | Sunnje |
| Type | Electronic equipment |
| Product name | anti static clean bar ionizer |
| MPN | SIB5S-C |
