Description

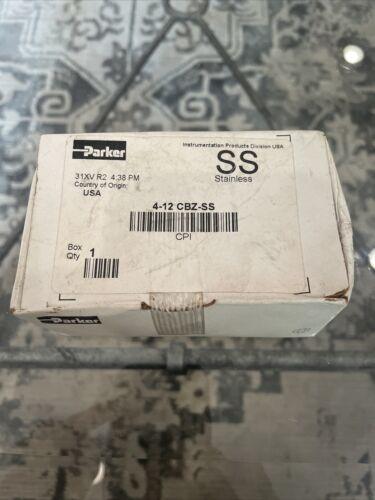

This Parker elbow fitting is a must-have for any business or individual in need of high-quality fittings and adapters. With its durable stainless steel construction, this fitting is sure to withstand even the most demanding applications. It is brand new and comes in an unopened box, ensuring that you receive a pristine product that is ready to use right away. This fitting is compatible with a variety of hydraulic, pneumatic, pump, and plumbing systems, making it a versatile addition to any toolbox. Trust Parker to deliver the best in fittings and adapters, and order yours today.
Thank you for reading this post, don't forget to subscribe!Manufacturer: Parker Hannifin
Application: Heat Trace System, Instrument Air Line, Process Line
End Connection: Tube x Male Threaded
Material Specification: ASME SA182 316/BS970 316-S31/DIN 4401
Pressure Rating: 6400 psi
Process: Close Grain Forging
Body Material: 316 Stainless Steel
End 1 Size: 3/4 in.
End 2 Size: 3/4 in.
Product Category: Fittings
Product Type: Elbows
Brand/Division: Instrumentation Products
Product Description
Elbow Fitting; Type Single Ferrule, Reducing; Size A 1/4 Inch; Size B 3/4 Inch; End Connection Tube x Male Threaded; Material 316 Stainless Steel; Material Specification ASME SA182 316/BS970 316-S31/DIN 4401; Process Close Grain Forging; Pressure Rating 6400 PSI; Application Instrument Air Line, Heat Trace System, Process Line; Used for Fractional Tube
Features/Benefits
Exceptionally Wide Choice of Configuration Style; Suparcase Surface Treatment Process for Superior Material Hardening; Hardened Ferrule Provide Leak-Free Connection; Silver Plated Nut Provide Gall Resistance During Makeup
Series Information
Parker CPI™ single ferrule compression tube fittings are designed as leak free connections for process, power and instrumentation applications. These tube fittings utilize a single ferrule for easy make-up and excellent performance in vibration applications. The "spring loaded" effect of the single ferrule creates a constant tension between the fitting body and fitting nut. CPI™ tube fitting are manufactured from heat code traceable 316 stainless steel. Other materials include 6Mo, Alloy 825, Alloy 625 and Alloy C-276. Straight fittings are machined from cold finished bar stock, while shaped bodies are machined from close grain forgings.
Additional Product Information
Elbow Fitting; Type Single Ferrule, Reducing; Size A 1/4 Inch; Size B 3/4 Inch; End Connection Tube x Male Threaded; Material 316 Stainless Steel; Material Specification ASME SA182 316/BS970 316-S31/DIN 4401; Process Close Grain Forging; Pressure Rating 6400 PSI; Application Instrument Air Line, Heat Trace System, Process Line; Used for Fractional Tube
Additional information
| Brand | Parker |
|---|---|
| MPN | 4-12 Cbz-ss |
